KYK H- HORIZONTAL THERMAL OIL HEATERS-25705

Product Code: KYK H

KYKH SERIES
Heat generation capacity: 300 kW - 2326 kW
Fuel Type: Natural Gas, LPG, Diesel, Fuel Oil

3 PASS HIGH EFFICIENCY SPIRAL THERMAL OIL HEATER

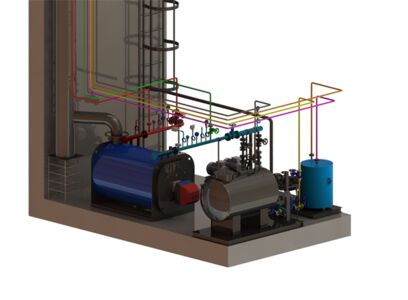

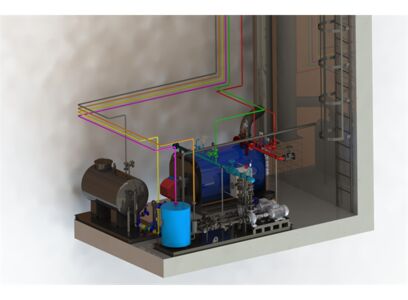

KYK H model horizontal thermal oil heaters are designed to obtain adequate heat transfer surface by using spiral shaped oil tubes inside which can be single or double sectors according to the required capacity.

The design calculations are carried out to provide correct circulation velocity for the thermal oil inside the heater which is vital to prevent overheating of the oil, cracking and deformation in the heater tubes, heat transfer property loss of the thermal oil and overall efficiency loss.

To increase the heater efficiency, hot smoke / fire circulates by 3 pass system around the spiral oil tubes and so stack temperature is decreased and the useful heat is transferred more.

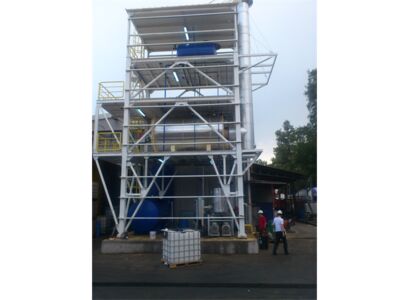

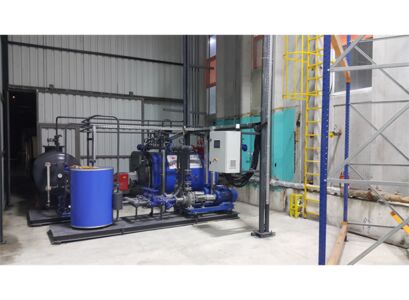

KYK H model heaters are suitable to be used with gas and oil burners. Boiler is supplied with all necessary accessories, control devices and auxiliary equipment on customer’s request.

Heater capacity, total heat transfer surface, used tube length, thermal oil flowrate and pressure loss are precisely calculated and during design stage. (Approximately 25000 kcal/h heat is obtained from 1 m2 heating surface)

Isolation of the heater is specially made to minimize the thermal loss. On the surface; special covering plates are used to protect the outer shell from weather conditions and tearing at maximum level.

KYK H boiler body consists of a horizontal cylindrical body including spiral shaped single or double coil oil tubes. EN12952 is taken as reference for design calculations where applicable.

Steel Materials: S235J – S355J carbon steel according to EN12952 requirements
Tubes: Seamless tubes (EN10216, ASTM A106 Gr.B or St35.8 & Gost10)
Isolation: 100 mm thick and 80 kg/m3 rock wool is covered with PVC coated
galvanized steel, aluminum or stainless steel according to Customer’s request
