EBS SERIES – EASY EXPORT PACKAGED YSB MODEL STEAM BOILERS -25723

Product Code: EBS

EBS SERIES
Steam production capacity: 250 kg / h - 2000 kg / h
Operating Pressure: 8 Bar
Fuel Type: Biomass, Coal, Pellet

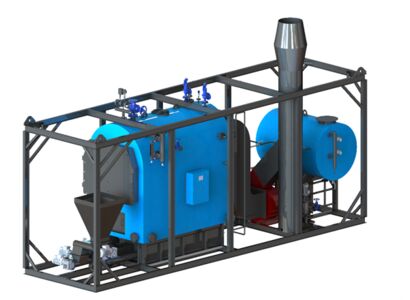

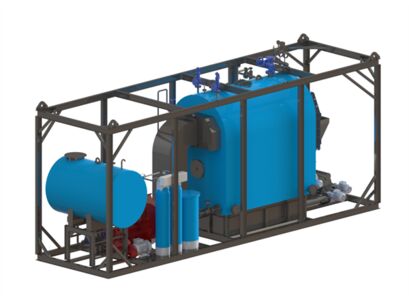

EASY EXPORT PACKAGED BIOMASS FUEL YSB MODEL STEAMBOILERS

EBS series steam boilers are packaged type of YSB model boilers for easy installation and operation.

EBS series boilers are designed for operation at 8 bar. It can be manufactured for higher operating pressures up to 10 bar or lower operating pressures upon customer’ s request.

This configuration is preferred due to low investment cost.

Thanks to packaged design customized for dairy and feed mill plants, all auxiliary equipment is pre-installed and the system is ready to use. By this way, start up is quick and easy. This type of boilers can also be used in different processes except dairy and feed mill plants by being manufactured at different working pressures.

There is no need to build a refractory foundation in the boiler room which is necessary for solid fired boilers since the packaged system already has it.

Space requirement is smaller due to their compact design and this minimizes investment cost for boiler room.

Best solution for rental applications.

Safe and stable operation thanks to high-quality safety equipments.

PLC controlled control board with touch screen provides easy operation and remote access that allows technical support to any point in the world quickly.

Quick and high-quality steam generation due to its high efficiency design.

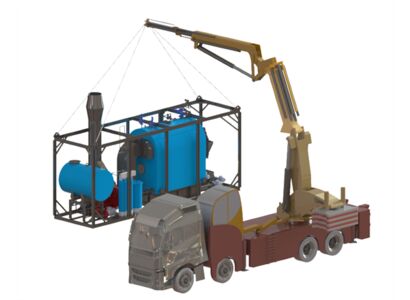

The robust steel frame allows easy transport and possible damaging risks that may occur during the transportation are eliminated.

Factory tests are carried out by completing cabling and piping between the components.
