Thermoform Fill Seal Machine for Butter and Margarine-46136

Product Code: YZ6

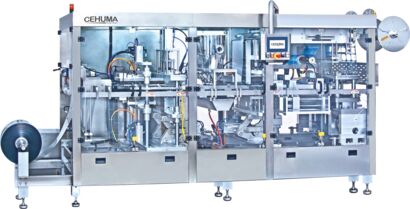

YZ thermoformers are mainly for automatic form fill seal applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt . The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

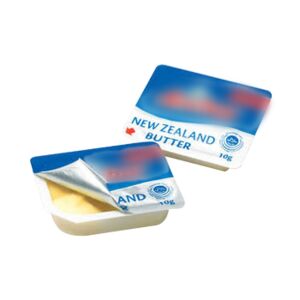

AS Butter and Margarine are milk derivates thermoforming filling and sealing of them are very critical to ensure that the potential food safety risks are assessed and eliminated at the packaging process. Further, butter and margarine are kind of high viscous fluids so filling is different than standard viscous fluids as it should be volumetric filling. All the surfaces of the filling unit must be smoothly polished to have almost no roughness on the flowing ways of butter and margarine to keep the food safety risks away.

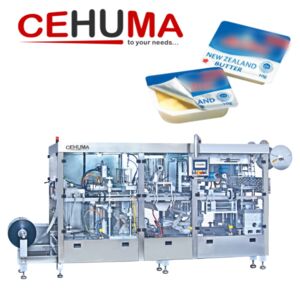

Cehuma YZ Series are very suitable for forming filling and sealing of butter and margarine at various weights and volumes depending on customer requirement at high speed with all safety precautions taken into account.

We also offer a complete turnkey solution to our customers including end of line robots for putting each product in the carton boxes, wrap and shrink them to make ready for shipment.

Technical specifications
• Capacity (Cyc/min) | 15-35
• Index (mm) | 70-200
• Web Width (mm) | 150-500
• Bottom Web Thickness (μm) | 550-1200
• Bottom Web Material | PVC/PET/PS/PP
• Top Web Material | AL+PET
• Machine Length (mm) | 5.500-11.000
• Energy Consumption (kW) | 8-25
• Electric Supply | 3 x 380V. 50 Hz.
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Entire Stainless Steel Structure
• Safety Standards According to "EC" Regulations
• Large Touch Screen
• Wide Range of Cup Design Possibilities
• Advanced Punching Technology
• Servo Technology
• Programmable Advance Speed
• Multi-language Selection
• Precise Dosing
Options
• Automatic Dosing
• Water Dosing
• Juice Dosing
• Viscous Fluids Dosing
• IP65 Level of Protection
• UV Lights Sterilization
• Hepa Filter
• CIP (Clean In Place) Integration
• Labeling Systems
