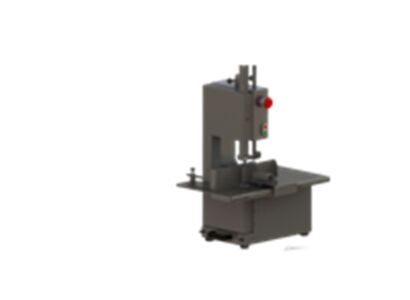

TES-100 MEAT & BONE SAW-5796

Product Code: TES-100

2000.0000 USD

- Frozen and fresh meat with or without bone meat cutting saw is developed for small enterprises.
- The body is completely made of 304 stainless steel.
- The machine has electromagnetic motor brake and safety switch.
- It has safety switch. Operator safety is considered at the highest level in the machine and saw blade stops simultaneously when you shut off machine thanks to the electromagnetic motor brake.
- When the door is opened, it has a characteristic of stopping in less than 1 second.
- It has easily adjustable product placing arm.
- It is very easy and safe to use with its ergonomic design.
- Emergency stop-start button used is IP 65 and it is protected against dust and water.
- Use steel gloves for your safety.
- It can be produced as mono phase or triple phase as an option.
- All products of Arı Makina are produced at CE standards.
- Specially designed meat placing roller is foldable when if not used.
- Blade cutting distance can be adjusted easily.

Optionally; we have footed and mono-phase (220 V) models, so prices vary according to the added feature.

- Motor ( IP 55) : 220 or 380 V
- Ampere : 10.8 A
- Frequency: 50 Hz
- Fuse current: 16 A
- Motor power: 1.5 kW
- Blade speed : 15 m/s - Weight : 56 kg - Maximum cutting width: 173 mm - Maximum cutting height: 215 mm - Lathe size: 655x390 mm2
