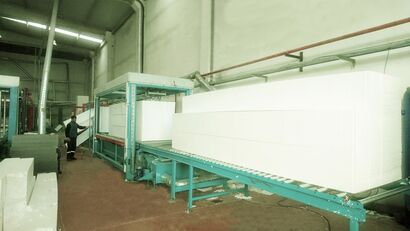

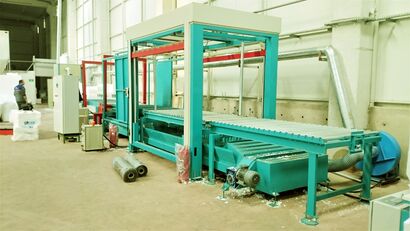

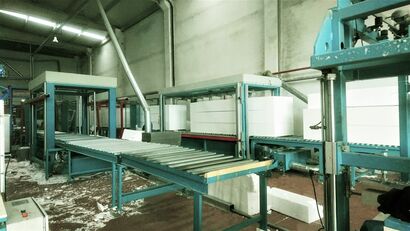

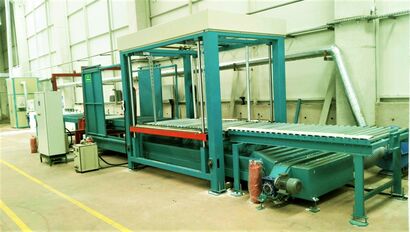

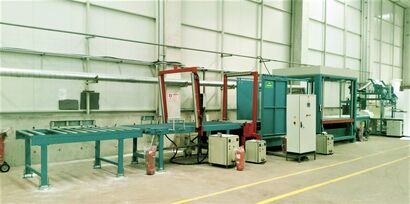

IZOMAK ST4000 Automatic Styrofoam Sheet Cutting Line -37873

Product Code: ST4000

The IZOMAK ST4000 Automatic Styrofoam Sheet Cutting Line has the following features:
Continuous cutting.
Vibratory cutting system.
Automatic wire sorting unit.
Easy access to machine production equipments.
Cutting speed adjustment; 0.1 m/min – 2.0 m/min (depending on density and humidity).
Horizontal cutting wires (min. 20 mm).
Vertical cutting wires (min. 500 mm).
Cutting wires are temperature adjusted.
Comes with scrap collection and pre-breaking unit (optional).

Technical Specifications and Capacity:
Machine Type: ST4000
Exact Cutting Measures (LxWxH): 4 x 1x 0.5 – 4 x 1.25 x 1
Air Connection : ½”/15
Energy Connection: 220/380 V
Total Power: 20.5 – 60 kW
Total Weight : 4500 kg
Machine Placement Dimensions (LxWxH): 1.3 x 2.5 x 22.4 m
