H TYPE FACADE SCAFFOLDING SYSTEM-657

Product Code: H TIPI CEPHE ISKELESI

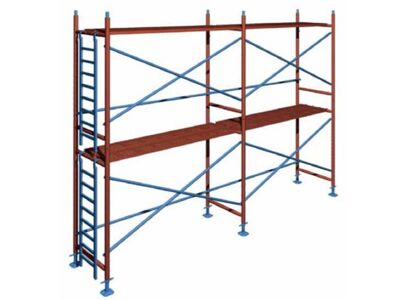

It is a practical scaffolding system that can be used for all sorts of facade works like painting,plastering,coating and etc. It can be used as mobile scaffolding by adding castors.lt consists of 3 basic parts, namely Hframe, diagonals and guard rail. H-frames made from dia 48x2.5mm tubes, diagonals and guard rails made from dia 32x2mm tubes. Lower adjustable jack, steel plank, ladder and wall leaning component with clamp used as auxiliary components. Interlocking tube within the H-frame manufactured in custom pressed form for making erection easier. Its connection with H-frames made by pins.
Especially in high structure applications, adding one on oneother becomes practial and personnel safety maximized. PORTI-H scaffolding system consists of modules. One module consists of 1 H-frame, 2 diagonal components and 1 horizontal connection component (guard rail). One module covers 2 m. height and 2.5m length, 5m2 surface area in total. Calculation of required scaffolding quantities made as one module for every 2.5m height and 2m.length by leaving first row out.
