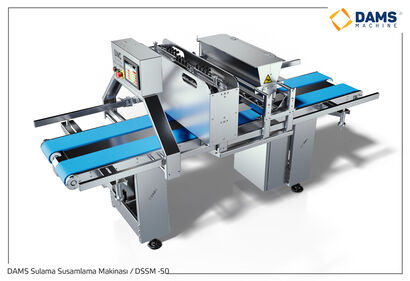

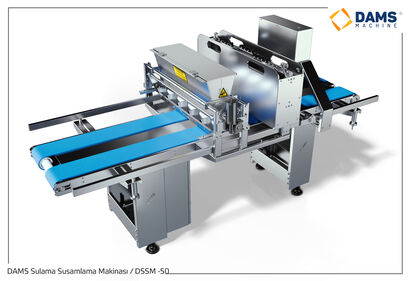

DAMS Water Sprayer and Sesame Machine-41715

Product Code: DSSM-50

TECHNICIAL SPECIFICATIONS
MAX. POWER 1.5 KW
VOLTAGE 380 V
MAX. CURRENT 16 A
MACHINE WIDTH 970 mm
MACHINE LENGTH 2245 mm
MACHINE HEIGHT 1245 mm
MACHINE WEIGHT 250 Kg

GENERAL FEATURES
Our machine is used in bagel, roll, sandwich and hamburger breads.
Machine settings can be made on PLC and digital display.
These settings are saved in the recipe and do not want to be re-adjusted in product change.
Machine chassis is made of 304 Cr-Ni sheet metal.
It has the feature of spraying the desired amount of water, eggs, slurry and molasses on top of the products in the flat tray or molded tray.
At the same time, it can sprinkle the desired amount of granular materials such as sesame, bran, kernel, rye on the products on the flat tray or molded tray.
It is simple to use and clean.
It can be installed on the lines as required.
Note: Since there are pneumatic pistons on the machine, air of minimum 4 bar pressure is
required for the operation of the machine. 5 * 2.5 multiple cables must be use for electricity.
In order to prevent damage to the automation products used in the machine, a suitable
regulator is recommended to prevent voltage fluctuations in electricity.
