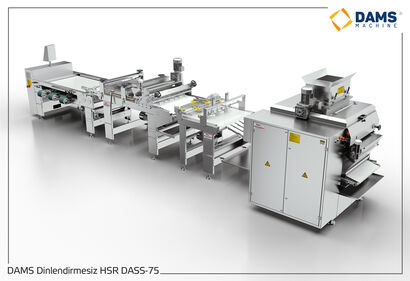

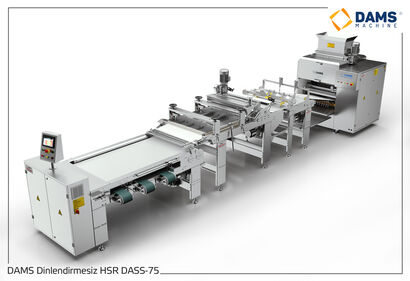

DAMS Hamburger Sandwich Roll Bread Line Without Proofer-41699

Product Code: DASS-75

TECHNICAL SPECIFICATIONS
MACHINE WIDTH 1600 mm VOLTAGE 380V
MACHINE LENGTH 9260 mm CURRENT 32A
MACHINE HEIGHT 2435 mm FREQUENCY 50 Hertz
MACHINE WEIGHT 3600 Kg POWER 12 kW

GENERAL SPECIFICATIONS
The settings are made easily from the PLC-controlled touch screen.
Mechanical settings are simple to use and easy to learn.
Information on usage can be stored in memory and used continuously.
Daily cleaning is easy.
It is easy to disassemble, install and replace belts and running parts.
The speeds of all belts can be adjusted to the desired level.
Electrical and electronic faults that may occur are displayed on the PLC screen with pic and text.
In case of malfunction, remote access can be performed with PLC program (Optional)

CUTTING SECTION
Machine body is 304 crom. The contact surfaces of the dough are 304 crom and crom coating.
Cutting grammage ranges as below;
30 – 110 gr
40 – 160 gr
50 – 180 gr
70 – 200 gr
Different outer drums are used for dough cutting in these weight ranges.
Average roll bread dough cutting and rounding capacity is 11.000 in 1 hour.
Maximum11,000 pieces of hamburgers and pastry dough per hour, the average of
7,000 pieces of bagel and sandwich dough.
Since very little flour is used in the dough section, it provides a clean working environment.
The amount of flour given to the cut dough can be adjusted.
The lubrication system is automatically adjusted during the dough cutting process.
Unlike other machines, it does not wear pulp due to non-pressurized cutting.

INTERMEDIATE PROOFING SECTION
This part of our machine is used for short-term fermentation to ensure easy shaping of products.
It provides easier processing of the dough that is cut and rounded according to the weight.
6 dough (can also be 8) coming from the cutting section rubbed down to 3 (4 in 8 cut) at the exit of the resting section.
In addition to the factors such as climate, environment, weight of the dough to be cut, intermediate resting is done in such a way that there will be a number of dough carrying baskets to be determined according to the demand for rest time.
There are 6 dough carrying baskets in each bowl. Baskets are made of food grade, cleanable material (polymer).
The resting time depends on the speed of the cutting machine. The number of bowls is determined according to the resting time. The average time was determined as 5 minutes. For higher times, the number of bowls is increased and made suitable for the desired time.
In cases where the use of resting is not considered, the dough’s coming from the cutting section is transferred directly by using the direct transition tape available under the resting section.
When Simit and Sandwich products are produced, Proofer Section is used.

AUTOMATIC TRAY LOADING MACHINE
The pan enters the Tray Loading Machine automatically. It exits automatically after laying.
The spreading distance is adjusted via the screen.
Automatically sorts the cutten dough into the desired size tray.
Tray dimensions should be reported in advance. Laying size changes for non-standard tray.
It makes automatic sorting with simple settings on corrugated and flat trays.
If the tray is not properly placed, sorting will not take place, it will give a warning on the screen.

Note: Since there are pneumatic pistons on the machine, air of minimum 4 bar pressure is required for the operation of the machine. 5 * 2.5 multiple cables must be use for electricity. In order to prevent damage to the automation products used in the machine, a suitable regulator is recommended to prevent voltage fluctuations in electricity.
