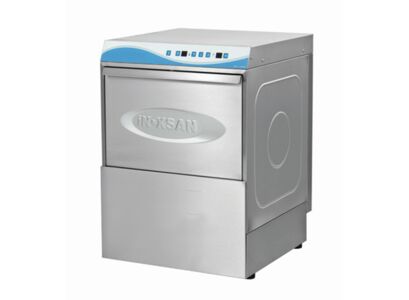

Undercounter Dishwasher-18716

Product Code: BYM 052

All parts; which are in contact with the body of the machine and the water; are produced with AISI 304 quality 18/8 Cr-Ni stainless steel plate.
It has 3 different washing programs according to the type and degree of dirtiness of the dish.
Wash time, rinse time and temperature can be changed from the electronic card service menu based user's choice.
Temperature indicator is 3 digit; adjustable for °C and ˚F.
The machine switches to automatic rinsing and rinse with the 85˚C (185˚F) water flowing from boiler.
Thermo-stop rinse feature guarantees the sterilization of the surfaces. It waits until the rinse water warms up to 85˚C (185˚F) and washes with 85˚C (185˚F) water.
There is an audio alarm system indicating that washing has ended.
Error and fault codes can be seen from the device control panel.
When the door is opened; there is a safety system to stop the operation.
The machine can wash plates with maximum 290 mm diameter and glasses with maximum height of 280 mm and other objects .
Glass and plate racks are made of heat resistant plastic material.
Washing and rinsing arms and filters can be easily disassembled for cleaning.
As standard accessories; there are 1 plate and 1 glass rack with 500*500 mm dimensions
Optional units: Drainage pump.
Water Inlet ¾
Water Input Pressure: 2-4 bar
Heat Capacity:
Tank: 2,7 kW
Boiler: 4,5 kW
Max. Power consumption: 4.95 kW

Rinse Water Consumption: 3 lt/rack
Power Input: 230V 1N AC 50 HZ
Cable cross section: 3*2.5 mm2
Capacity:
Plate: 540 pcs/h
Glass: 1440 pcs/h
Dimensions: 600*600*830 mm
Net Weight: 50 kg
