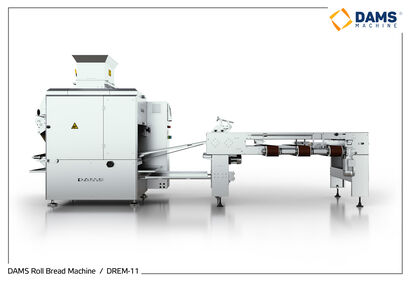

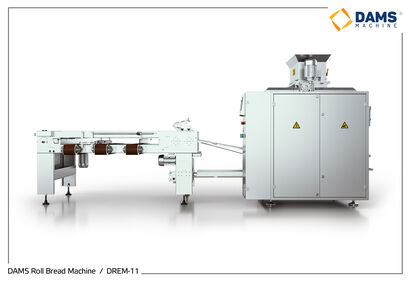

DAMS Roll Bread Machine-28138

Product Code: DREK-11

TECHNICAL SPECIFICATIONS

MACHINE WIDTH 1670 mm VOLTAGE 380 V
MACHINE LENGTH 4110 mm CURRENT 25 Amper
MACHINE HEIGHT 1840 mm FREQUENCY 50 Hertz
MACHINE WEIGHT 2000 kg MAX. POWER 7 kW
CAPACITY (Average)11,000 pcs / h AVERAGE POWER 6 Kw

GENERAL SPECIFICATIONS

The settings are made easily from the PLC-controlled touch screen.
Mechanical settings are simple to use and easy to learn.
Information on usage can be stored in memory and used continuously.
Daily cleaning is easy.
It is easy to disassemble, install and replace belts and running parts.
The speeds of all belts can be adjusted to the desired level.
Electrical and electronic faults that may occur are displayed on the PLC screen with pic and text.
In case of malfunction, remote access can be performed with PLC program (Optional)

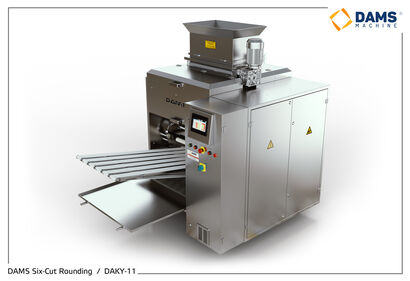

CUTTING SECTION

Machine body is 304 crom. The contact surfaces of the dough are 304 crom and crom coating.
Cutting grammage ranges as below;
30 – 110 gr
40 – 160 gr
50 – 180 gr
70 – 200 gr

Different outer drums are used for dough cutting in these weight ranges.
Average roll bread dough cutting and rounding capacity is 11.000 in 1 hour.
Maximum11,000 pieces of hamburgers and pastry dough per hour, the average of
7,000 pieces of bagel and sandwich dough.
Since very little flour is used in the dough section, it provides a clean working environment.
The amount of flour given to the cut dough can be adjusted.
The lubrication system is automatically adjusted during the dough cutting process.
Unlike other machines, it does not wear pulp due to non-pressurized cutting.

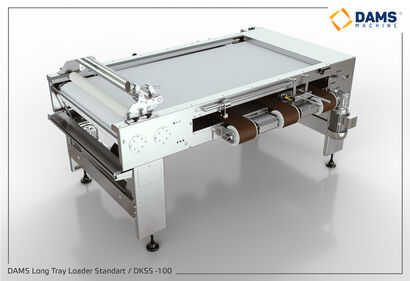

AUTOMATIC TRAY LOADING MACHINE

The pan enters the Tray Loading Machine automatically. It exits automatically after laying.
The spreading distance is adjusted via the screen.
Automatically sorts the cutten dough into the desired size tray.
Tray dimensions should be reported in advance. Laying size changes for non-standard tray.
It makes automatic sorting with simple settings on corrugated and flat trays.
If the tray is not properly placed, sorting will not take place, it will give a warning on the screen.

Note: Since there are pneumatic pistons on the machine, air of minimum 4 bar pressure is required for the operation of the machine. 5 * 2.5 multiple cables must be use for electricity. In order to prevent damage to the automation products used in the machine, a suitable regulator is recommended to prevent voltage fluctuations in electricity.
